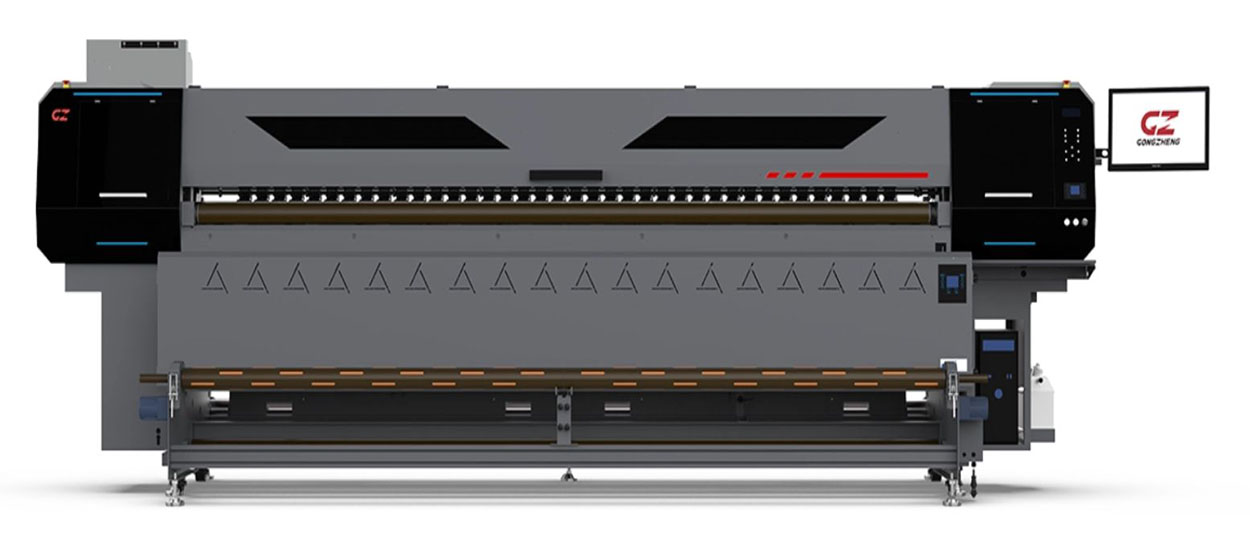

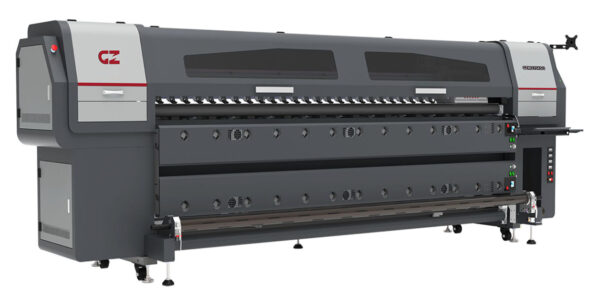

ThunderJet AQ3204S

Print Head

 4 Epson I3200 E1 print heads

Technology

 Piezo Variable dot(Greyscale)

Ink

 EPI2-2 years durability eco solvent ink

Color Config.

 KCYM

Ink Supply System

 Bulk ink system with ink cartridges

Printing Width

 Max. 3200mm

Media Type

 Banner, Coated PP, Vinyl, PVC film...

Roll Weight

 Max. 150KGS

Core Diameter

 3 in (76.2mm) or 2 in (50.8mm)

Dying System

 Three heaters and Dual IR Dryers

Printing Speed

 Draft                               360×1800 dpi               110㎡/h

 Production                      720×1200 dpi               82㎡/h

 High-res                          720×1200 dpi               64㎡/h

 Photo                              720×1800 dpi               55㎡/h

Data Interface

 External: Ethernet; Internal: Fiber Optical

Working Environment

 Temp. 23℃~29℃, Humidity: 50%~80%

Software

 FlexiPRINT / Onyx(Optional)...+ GZ Printer Manager

Power

 Single phase, AC220V±10%, 50/60H, 6.7A(Printer)+17Ax2(IR Dryers)

Packed / Installed Size

 LxWxH(mm)：4930x1150x1760 / 4885x1401x1661

G.W. / N.W.

 1192KGS / 903KGS
