RTR UV Solutions

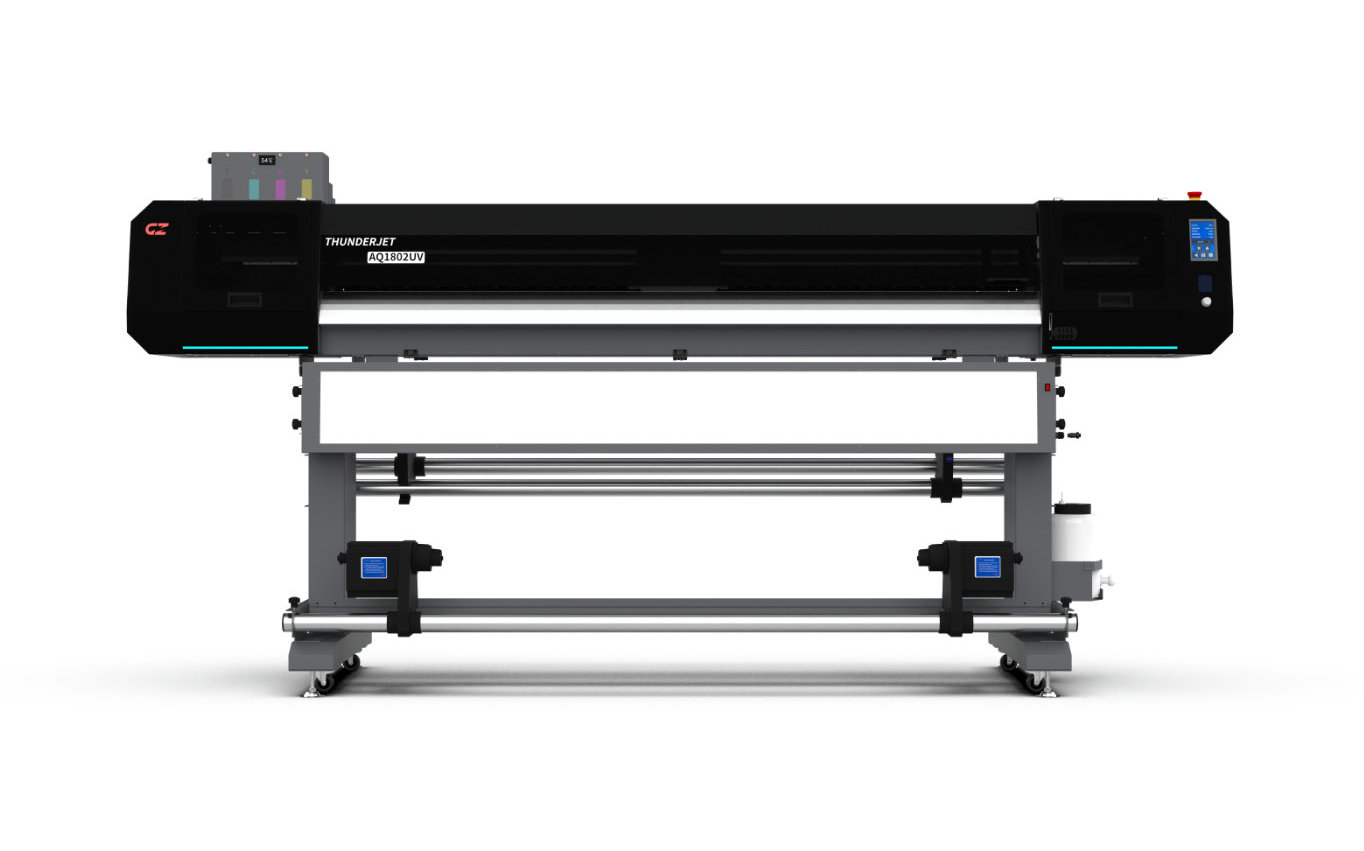

ThunderJet AQ1802UV
High Speed and High-quality 1.8m RTR UV Printer

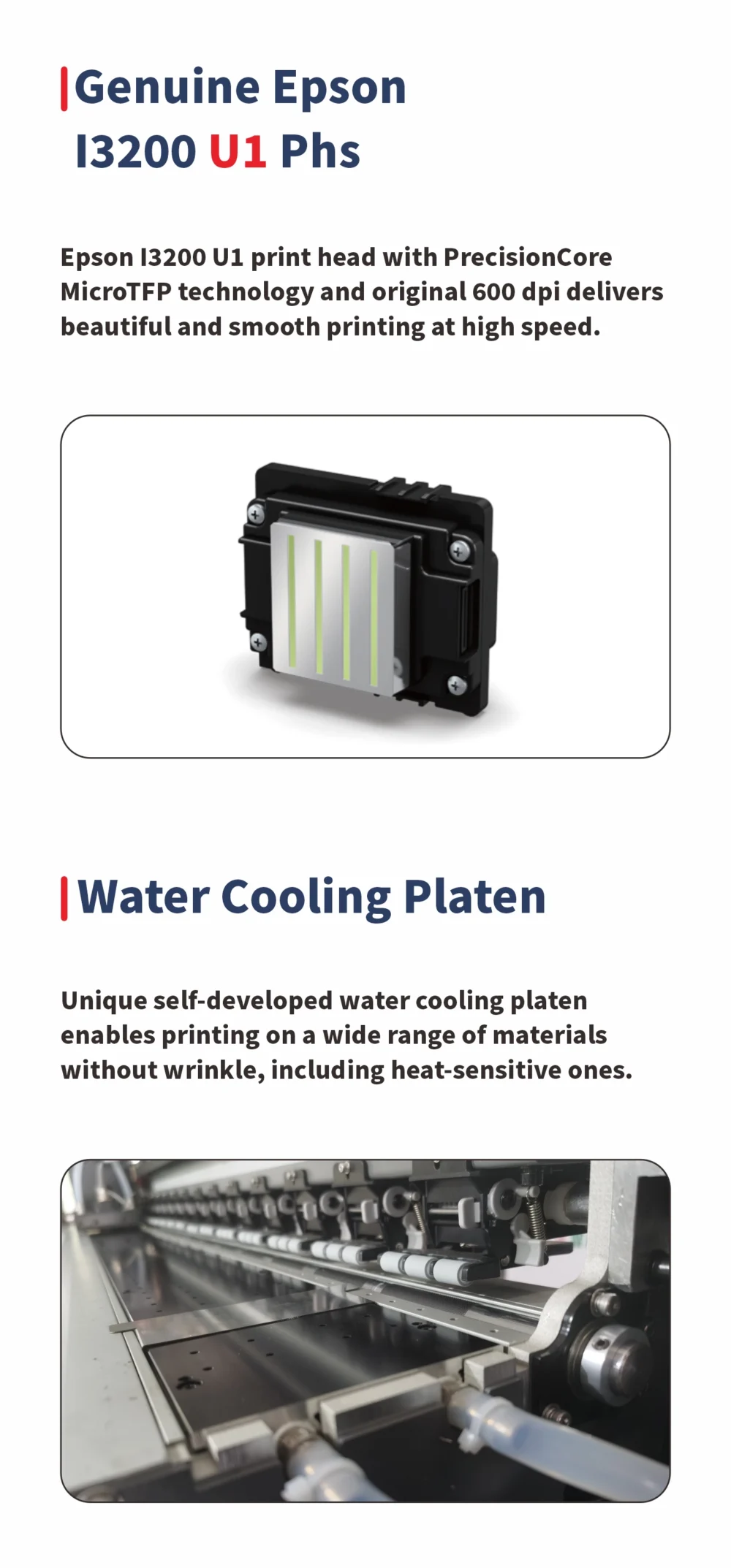

| ● | Genuine Epson I3200-U1 Phs |
| ● | Intelligent Heating Unit |
| ● | White Ink Recirculation System |
| ● | Water Cooling Platen |
| ● | Adjustable Stepping System |
|
Model |
ThunderJet AQ1802UV |
|
Print Head |
1~2 Epson I3200-U1 Print Heads |
|
Technology |
Drop-On-Demond Piezo with Variable |
|
Curing System |
Dual Water Cooling LED UV Lamps |
|
Ink |
UV Flexible Ink |
|
Color Config. |
2xKCYM; 1xKCYM+W; W+1xKCYM |
|
Ink Supply System |
Bulk Ink Supply System + White Ink Recirculation System |
|
Ink Tank |
1500ml |
|
Printing Width |
Max. 1800mm |
|
Media Type |
Banner, Coated PP, Vinyl, Backlit Textile, PVC Film, PET Film...... |
|
Roll Diameter |
Max. 300mm |
|
Roll Weight |
Max. 50KGS |
|
Core Diameter |
3 in (76.2mm) or 2 in (50.8mm) |
|
Printing Speed |
Mode Resolution 1xKCYM 2xKCYM KCYM+W |
|
Draft 720x1200 dpi 24.93㎡/h 40.01㎡/h Production 720x1200 dpi 19.42㎡/h 36.19㎡/h 19.32㎡/h High-res 720x1800 dpi 12.47㎡/h 24.38㎡/h 12.37㎡/h Photo 720x1800 dpi 8.13㎡/h 16.24㎡/h 8.03㎡/h |
|
|
Data Interface |
External: Ethernet; Internal: Fiber Optical |
|
Working Environment |
Temp. 23°C~29°C, Humidity: 50%~80% |
|
Software |
FlexiPRINT / ONYX(Optional)...+ GZ Printer Manager |
|
Power |
Single-phase, 50Hz/AC, 220±10%; 5A(Printer+UV Controller) |
|
Installed Size |
LxWxH(mm): 2965x808x1524 |
|
G.W. / N.W. |
290KGS / 200KGS |
